Export Service vs. Video Editor Pipeline

A common trap for developers building video editors is treating the "Export" button like a save action for the live preview. A live preview is a low-resolution GPU approximation built strictly for real-time speed. Trying to capture or record that screen view results in blurry files, misaligned overlays, and silent crashes on low-end devices.

Exporting is a completely separate system—a deterministic pipeline that rebuilds video frame-perfectly from raw source files. In this guide, you will learn how to structure an enterprise-grade export pipeline using FFmpeg. By understanding these architectural principles, you can deliver crisp, full-resolution video exports without freezing your application UI.

The Architecture: Preview vs Export Pipeline

To build a reliable media engine, you must separate interactive viewing from export compilation. The editor trades frame accuracy for speed, rendering low-resolution GPU passes so touch interactions feel responsive. The export pipeline trades instant speed for accuracy, processing every frame strictly through an encoder to write a permanent .mp4 file.

Treating the export engine as an isolated architecture provides four distinct technical capabilities:

1. Guaranteed Order: Operations execute in a strict linear sequence.
2. Honest Progress: Track progress accurately using completed frame counts rather than fake timers.
3. Error Isolation: Pinpoint exact stage failures when media processing breaks.
4. Asset Reuse: Apply uniform processing rules across all incoming source clips.

The 6-Stage Export Pipeline Breakdown

A production export service routes raw media clips through a distinct six-stage workflow:

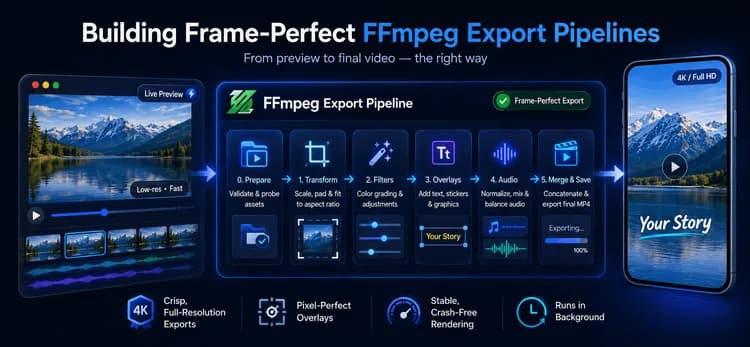

Architecture Flow Diagram

Raw Clips ➔ Stage 0: Prepare ➔ Stage 1: Transform ➔ Stage 2: Filters ➔ Stage 3: Overlays ➔ Stage 4: Audio ➔ Stage 5: Merge ➔ Final MP4

Stage 0 (Prepare): Validate project assets, generate working temporary directories, and probe true media durations using ffprobe.

Stage 1 (Transform): Scale and pad source media into destination aspect ratios (e.g., 1080×1920) while enforcing even pixel dimensions.

Stage 2 (Filters): Bake color adjustments, contrast tweaks, or 3D LUT presets directly into video frames at full quality.

Stage 3 (Overlays): Render text or stickers to transparent PNGs, positioning them via fractional coordinates relative to output size (x = fraction * exportWidth).

Stage 4 (Audio): Normalize sample rates (48kHz), adjust gain levels, and mix separate background music tracks with clip audio.

Stage 5 (Merge & Save): Concatenate all transformed media segments into a unified container and move the final MP4 to permanent storage.

Hands-On FFmpeg Commands for Each Pipeline Stage

Stage 0 & 1: Trimming, Scaling, and Padding

Always place seek flags (-ss, -to) before input paths for fast seeking. Force even frame dimensions and universal yuv420p pixel formats to ensure device compatibility.

Example config for scaling and letterboxing:

ffmpeg -ss 00:00:03 -to 00:00:09 -i clip.mp4 \
-vf "scale=1080:1920:force_original_aspect_ratio=decrease,\
pad=1080:1920:(ow-iw)/2:(oh-ih)/2:0xD3D3D3" \
-c:v libx264 -crf 23 -preset medium -pix_fmt yuv420p out.mp4

Stage 2 & 3: Color Grading and Fractional Overlays

Apply color equalizer filters and position graphic overlays using screen fractions (y = H * 0.9) with timeline display range rules (between(t,2,5)).

Example config for color adjustment and graphic overlay:

ffmpeg -i video.mp4 -i caption.png \
-filter_complex "[0:v]eq=contrast=1.1:saturation=1.2[bg];\
[bg][1:v]overlay=x=(W-w)/2:y=H*0.9:enable='between(t,2,5)'[v]" \
-map "[v]" -c:v libx264 -pix_fmt yuv420p with_caption.mp4

Stage 4, 5, & Single-Pass Optimization

Combine transform, overlay, and audio mixing operations into a single -filter_complex execution pass to avoid unnecessary quality loss from intermediate re-encoding.

Example config for a complete single-pass export pipeline:

ffmpeg -i clip.mp4 -i caption.png -i music.mp3 \
-filter_complex "\
[0:v]scale=1080:1920:force_original_aspect_ratio=decrease,\
pad=1080:1920:(ow-iw)/2:(oh-ih)/2:0xD3D3D3,\
eq=contrast=1.1[bg];\
[bg][1:v]overlay=x=(W-w)/2:y=H*0.9:enable='between(t,2,5)'[v];\
[0:a]volume=0.6[a0];[2:a]volume=0.9[a1];\
[a0][a1]amix=inputs=2:duration=first[aout]" \
-map "[v]" -map "[aout]" \
-c:v libx264 -crf 23 -preset medium -pix_fmt yuv420p \
-c:a aac -b:a 192k -movflags +faststart -y clip_final.mp4

Once individual clips share matching frame rates, aspect ratios, and codecs, merge them instantly using the concat demuxer without re-encoding:

Example config for stream concatenation:

ffmpeg -f concat -safe 0 -i files.txt -c copy final.mp4

5 Pipeline Realities The Live Editor Ignores

When writing application code to invoke FFmpeg binaries, your pipeline must address five edge cases:

1. Absolute Determinism: Eliminates dropped frames to produce identical output files across repetitive executions.
2. Headless Execution: Processes media cleanly in background threads without requiring screen rendering focus.
3. Codec Constraints: Handles strict encoding rules like even pixel boundary dimensions (e.g., truncating odd widths).
4. Job Cancellation & Cleanup: Prevents storage bloat by removing intermediate temporary files and handling user cancelations with grace.
5. Real Progress Telemetry: Parses FFmpeg -progress pipe:1 statistics (out_time_ms) to drive accurate progress bars rather than estimates.

Real-world context / example

At MicrocosmWorks, we helped a video editing platform resolve frequent export crashes, memory leaks, and misaligned captions on mobile devices. Their original architecture attempted to record canvas frames straight from the live UI preview.

We replaced this approach with an isolated background FFmpeg pipeline. By converting hardcoded pixel coordinates to normalized fractional vectors, enforcing strict color space conversions, and decoupling encoding from the main UI thread, we eliminated export failures entirely. Users could minimize the application while their videos compiled seamlessly in the background.

Conclusion

A video preview is a lightweight sketch, while an export pipeline is the final painting. Building your export service as an isolated, multi-stage FFmpeg pipeline guarantees frame-perfect quality, deterministic asset alignment, and crash-free rendering performance across every device.
